1.1_Manual_Temp_Control_of_ProcessThere are many commercial processes, which may require that the temperature of a material be controlled to produce an acceptable product. This control can be accomplished manually or automatically.

Manual Temperature Control

In manual control an operator periodically reads the process temperature and adjusts the heat or cooling input up or down in such a direction as to drive the temperature to its desired value. Manual control may be used in non-critical applications where small changes in the manipulated variable cause the processes to change slowly and by a small amount.

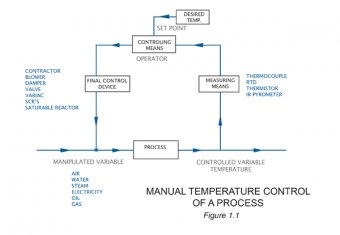

This process is shown in Figure 1.1.

This is only practical if there are few processes with infrequent process upsets. Manual temperature control is extremely resource heavy, as in order for this to work, the operator must have sufficient time to make a correction before the process temperature exceeds acceptable tolerance.

When accuracy is a must, when several processes are involved, or temperature changes are too rapid for operator correction, the use of an automatic control system is indicated. Typically these days the ability to simplify processes and improve efficiencies means that most temperature control systems are automatic.

Automatic Temperature Control System

The controlled variable, in this case ‘temperature’ is measured by a suitable sensor such as a thermocouple, RTD, thermistor or infra-red pyrometer and converted to a signal acceptable to the controller.

The controller compares the temperature signal to the desired temperature (setpoint) and actuates the final control device. The final control device alters the manipulated variable to change the quantity of heat being added or taken from the process. Common manipulated variables in temperature controlled processes are air, water, steam, electricity, oil and gas.

Other Temperature Control Devices

The final control devices are contactors, blowers, electric motor or pneumatically operated dampers and valves, motor operated variacs, time proportioning or phase fired SCR’s and saturable core reactors.

There are several types of automatic temperature controllers, which could be used for any given process, however, achieving acceptable temperature control depends on

  • The process characteristics
  • Defining how much temperature from the setpoint is acceptable and under what conditions (start up, running, idling)
